Your product is ready, but a failed UL or NEMA test looms. One small oversight in your enclosure design could mean costly rework, missed deadlines, and a frustrated team.

To ensure compliance, focus on three key areas. Master the difference between NEMA 4 and 4X¹, meticulously prepare your UL 508A² documentation, and make gasket selection a priority, not an afterthought.

"Passing UL and NEMA Compliance Tests"

I learned a tough lesson about compliance early on. A client was building a control system for a marina. They designed a beautiful panel using one of our standard enclosures, which we knew was perfectly water-tight³ and met NEMA 4 standards. It passed the initial hose-down test with flying colors. But months later, field units were failing. The salty air was corroding the latches and hinges. They had met NEMA 4, but they needed NEMA 4X. That little "X" made all the difference. It was a costly reminder that compliance isn't just about passing a one-time test; it's about understanding the environment and choosing the right materials and components from the very start.

What's the Real Difference Between a NEMA 4 and NEMA 4X Enclosure?

You need a weatherproof box. You see "NEMA 4" and "NEMA 4X" options that look identical. Choosing the wrong one could lead to your product rusting away in the field.

The "X" is the key. While both are water-tight against hose-directed spray, NEMA 4X adds a critical layer of corrosion resistance⁴, making it essential for harsh environments.
"The NEMA 4 vs. NEMA 4X Corrosion Difference"

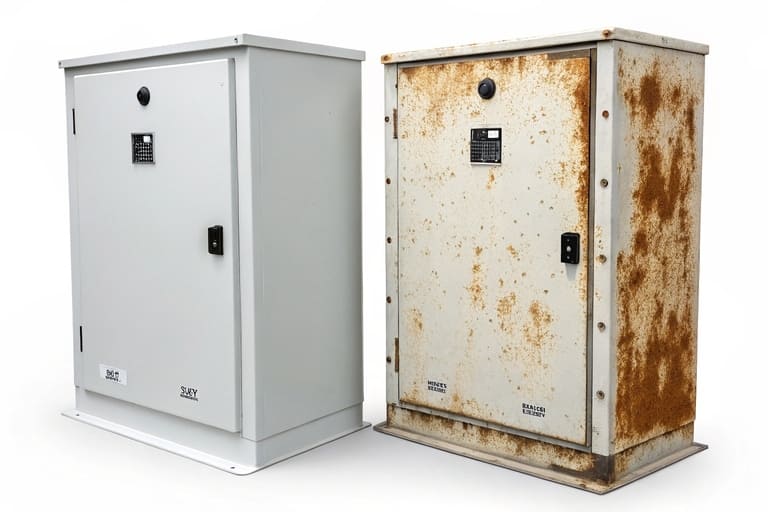

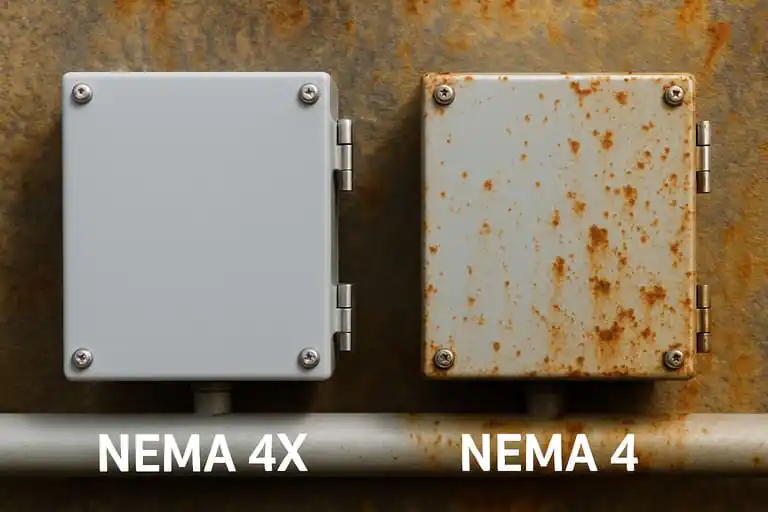

The difference between a NEMA 4 enclosure and a NEMA 4X enclosure is one of the most common points of confusion I see, and getting it wrong can be disastrous. Both ratings provide the same excellent protection against water ingress, specifically from hose-directed water and splashing. The critical distinction is the material's ability to withstand corrosion. A standard NEMA 4 enclosure might be made of painted carbon steel, which is fine for general outdoor use. However, if that enclosure is installed near the ocean, in a wastewater treatment plant, or anywhere with chemical exposure, it will fail over time. The "X" in 4X signifies that the enclosure is constructed from a corrosion-resistant material like stainless steel, fiberglass, or, my personal favorite, anodized or powder-coated aluminum. Aluminum naturally resists rust and its durability is enhanced by finishing, making it a perfect, lightweight choice for NEMA 4X applications.

NEMA 4 vs. NEMA 4X: A Quick Comparison

How Can You Prepare for a UL 508A Inspection Without Panic?

The UL inspector is scheduled to visit your shop. You're worried a missing document or an overlooked component rating will result in a failed inspection, halting shipments of your control panels.

Don't scramble. Prepare a UL 508A compliance checklist in advance. This ensures all your components are properly documented and your panel meets all requirements for a smooth, successful inspection.

"UL 508A Documentation Package"

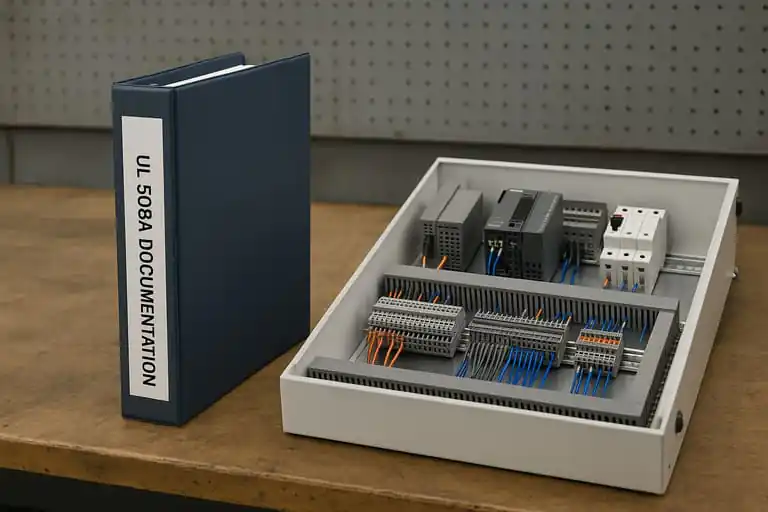

Facing a UL 508A inspection can feel like preparing for a final exam. The key to passing without stress is to have all your homework done ahead of time. The UL inspector's job is to verify safety and compliance, and they do this primarily through documentation. They need to see a clear, organized file that proves your industrial control panel is built to code. This file should contain a complete list of every component in the power path, from circuit breakers to power supplies to terminal blocks, along with their UL-recognized part numbers. Crucially, you must provide your Short Circuit Current Rating (SCCR) calculation, which shows the panel can safely withstand a fault. Finally, you need clear layout drawings that demonstrate proper component spacing for heat dissipation and safe wire bending radiuses. Having this package ready turns the inspection from an interrogation into a simple review.

Your Basic UL 508A Document Checklist

Why is Gasket Selection So Critical for NEMA Sealing?

Your enclosure looks perfect, the door latches are tight, but it still leaks during a water test. You're baffled, and your project is now stalled because of a simple rubber seal.

The failure is almost always the gasket. Proper gasket selection is a science. The material, profile, and compression design are just as important as the metal box they are sealing.

"Proper Gasket Selection and Compression"

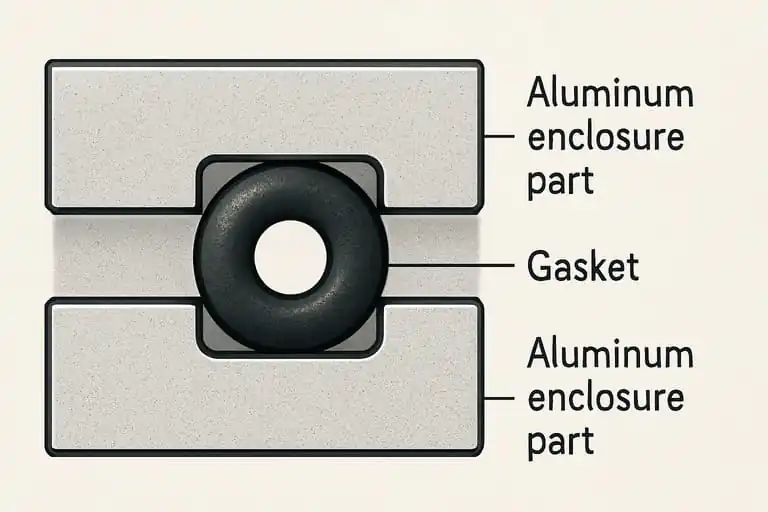

I tell my engineers that the enclosure and the gasket are a single system; one cannot work without the other. An incredibly rigid box will still leak if the gasket is wrong. Gasket selection involves three key choices. First, the material. Silicone is fantastic for wide temperature ranges but can be less durable. EPDM⁵ is a workhorse for outdoor applications because of its excellent UV and ozone resistance. Second, the profile. A simple O-ring is effective, but a hollow "D" or "P" profile often requires less compressive force, which is useful for large doors. Third, and most importantly, is the groove design. The groove must be sized to compress the gasket by a specific amount, typically 20-40% of its original height. Too little compression and it won't seal; too much and you crush the gasket, causing it to lose its memory and fail over time. A continuous, poured-in-place gasket is often superior to a spliced strip, as it eliminates the splice joint, which is always a potential leak point.

Common Gasket Materials for Enclosures

Conclusion

Achieving UL and NEMA certification is a matter of precise engineering. By mastering the NEMA 4/4X distinction, preparing your UL 508A documents, and prioritizing gasket selection, you ensure compliance every time.
