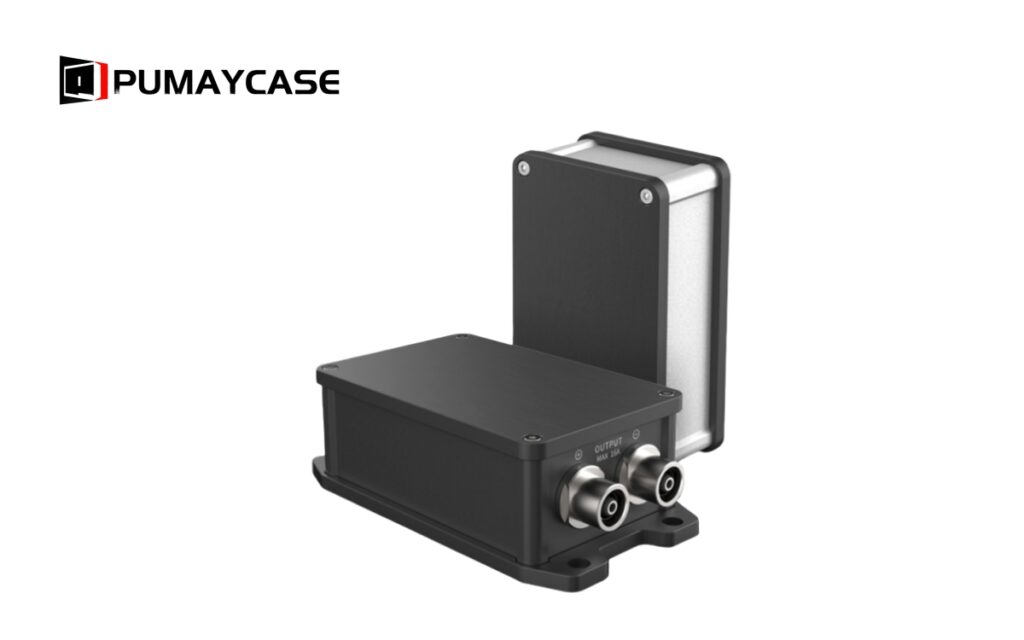

Industrial enclosures often operate in harsh environments, where they must protect sensitive electronics from dust, water, and other external factors. The Ingress Protection (IP) rating system, defined by the IEC 60529 standard, indicates the level of protection an enclosure provides.
IP54, IP65, and IP67 are among the most common ratings in industrial applications, each suited for specific environments and use cases.
Let’s break down these ratings and explore their typical applications.
What Is the IP Rating System?
An IP rating consists of two digits:
- First Digit (Protection against solid objects and dust)
- Ranges from 0 (no protection) to 6 (dust-tight)
- Second Digit (Protection against water)
- Ranges from 0 (no protection) to 9 (protection against high-pressure water jets and immersion)
IP Rating Chart Overview
| IP Rating | Solid Protection | Liquid Protection |
|---|---|---|
| IP54 | Limited dust ingress | Water splashes from any angle |
| IP65 | Full dust protection | Low-pressure water jets |
| IP67 | Full dust protection | Temporary immersion (up to 1m) |
IP54, IP65, and IP67: Protection Level and Typical Applications
1. IP54 – Protection Against Limited Dust and Water Splashes
- Dust Protection: Limited ingress that won’t harm internal components.
- Water Protection: Resistant to splashes from any direction.
Application Scenarios:
Indoor industrial equipment that faces occasional water splashes or dust exposure.
Control panels in factories and manufacturing plants.
HVAC systems and low-risk outdoor enclosures (under shelter).
- -
2. IP65 – Dust-Tight and Water Jet Protection
- Dust Protection: Complete protection against dust ingress.
- Water Protection: Withstands low-pressure water jets from all directions.
Application Scenarios:
- Outdoor electrical enclosures exposed to rain and dust.
- Automation and robotics enclosures in harsh industrial environments.
- Telecommunication equipment in outdoor installations.
IP65 is ideal for heavy-duty environments where water and dust exposure are common.
3. IP67 – Dust-Tight and Temporary Immersion
- Dust Protection: Fully sealed against dust.
- Water Protection: Can withstand temporary immersion in water (up to 1 meter for 30 minutes).
Application Scenarios:
- Marine electronics and offshore equipment.
- Portable equipment that may encounter wet environments.
- Military and aerospace enclosures needing extreme protection.
IP67 is perfect for environments with high moisture levels or temporary immersion risks.
How to Choose the Right IP Rating for Industrial Enclosures
1. Environment Assessment
Consider the level of dust, water, and other external hazards. For example:
- Indoor, low-risk environments: IP54 is often sufficient.
- Outdoor or harsh industrial settings: IP65 or higher is recommended.
2. Application-Specific Needs
For sensitive equipment like sensors, communication devices, or power distribution units, a higher IP rating (IP65 or IP67) offers better long-term protection.
3. Cost vs. Protection
Higher IP ratings typically mean more robust sealing and construction, which can increase costs. Choose a rating that balances protection and budget.
IP Rating Summary Table
| IP Rating | Solid Protection | Liquid Protection | Application Example |
|---|---|---|---|
| IP54 | Limited dust protection | Water splashes from any direction | Indoor machinery, HVAC systems |
| IP65 | Fully dust-tight | Water jets from any direction | Outdoor enclosures, automation systems |
| IP67 | Fully dust-tight | Temporary immersion (up to 1m) | Marine equipment, outdoor sensors |
Conclusion
Choosing the right IP rating for industrial enclosures is crucial for protecting equipment and ensuring reliability in challenging environments. IP54, IP65, and IP67 each serve different purposes, from moderate indoor use to demanding outdoor and marine applications. Understanding these ratings helps ensure optimal performance and longevity of your devices.
