GA007 Aluminum Enclosure, 125 x 60 mm

ITEM NO.GA007

Request a GA007 quote. The choices below describe your request. Availability, dimensions, processes, quantity requirements and lead time are confirmed after review.

Custom Logo

Engraving Silkscreen UV print No Need

Custom Function

Conductive Non conductive Surtec 650 Anodizing

Brushed/sandblasted surface treatment, please send an inquiry for more custom colors！

If you can’t find the size you need, we offer customized solutions through existing profiles, CNC machining and surface finishing to meet your requirements.

Share your requirements so we can review your project and reply.

Choose file

Name

Phone

Message

Reference video: GA005, 100 x 50 mm. This is an example from the enclosure range, not a specification or test record for GA007. Request the current drawing for your selected model.

GA007 Customization and Fit Review

Start with the 125 x 60 mm nominal body cross-section and specify the length required for your electronics.

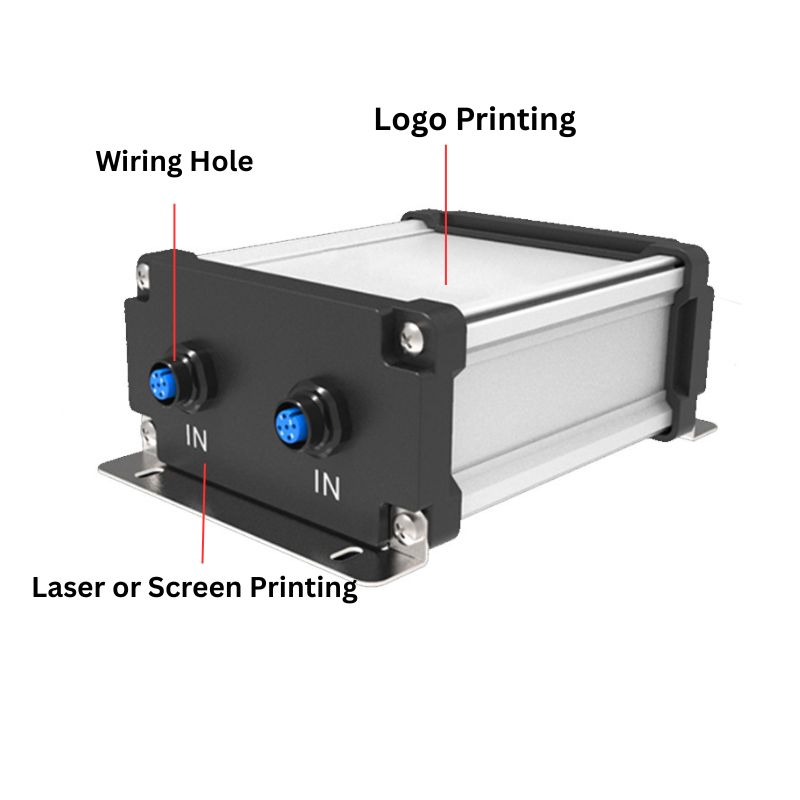

We can review CNC connector openings, mounting holes, surface finishes and product markings against your drawing or sketch. Share the PCB outline, component height and installation environment.

Material grade, tolerances, thermal and EMI requirements, sealing arrangement and any IP or environmental tests must be agreed for the actual customized assembly. Model selection alone does not establish tested performance.

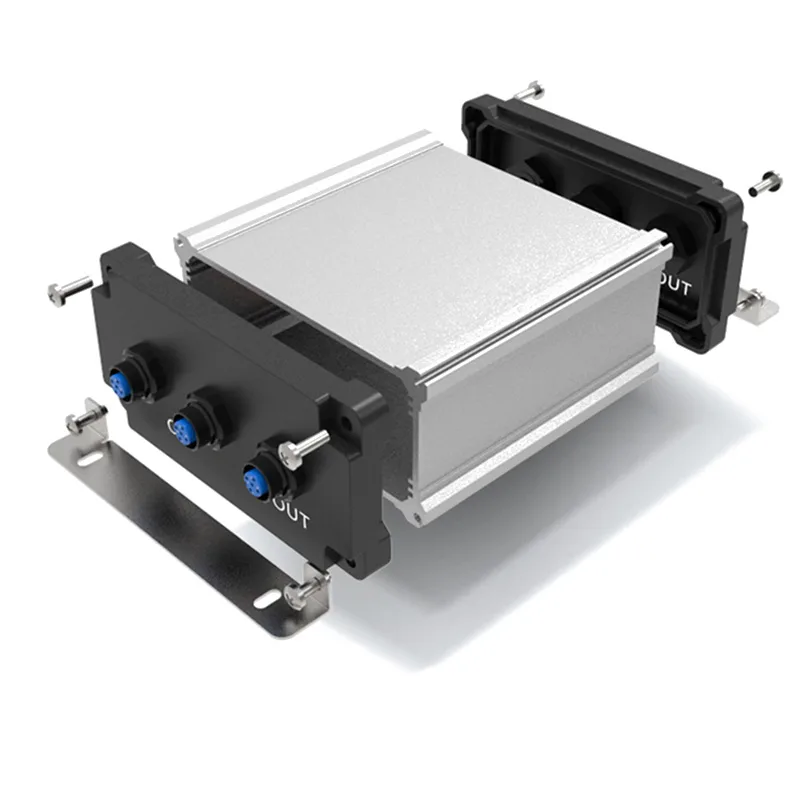

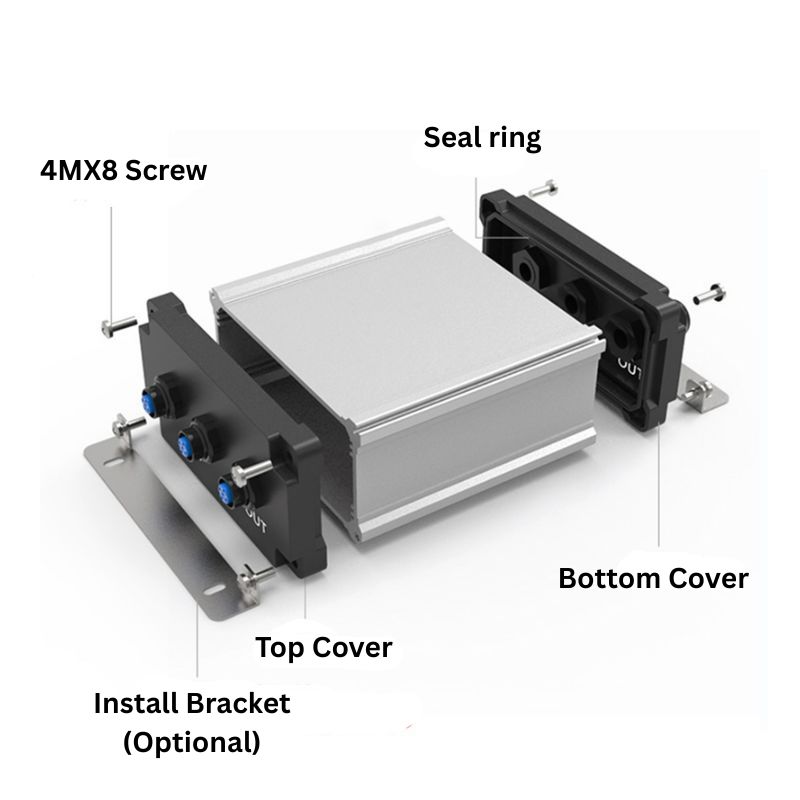

Assembly Components to Confirm

Extruded body and required length
End panels and sealing arrangement
Mounting brackets, if required
Compatible fasteners and quantities

The bill of materials and fastener specification are confirmed in the approved project drawing and quotation.

GA007 Size and Project Requirements

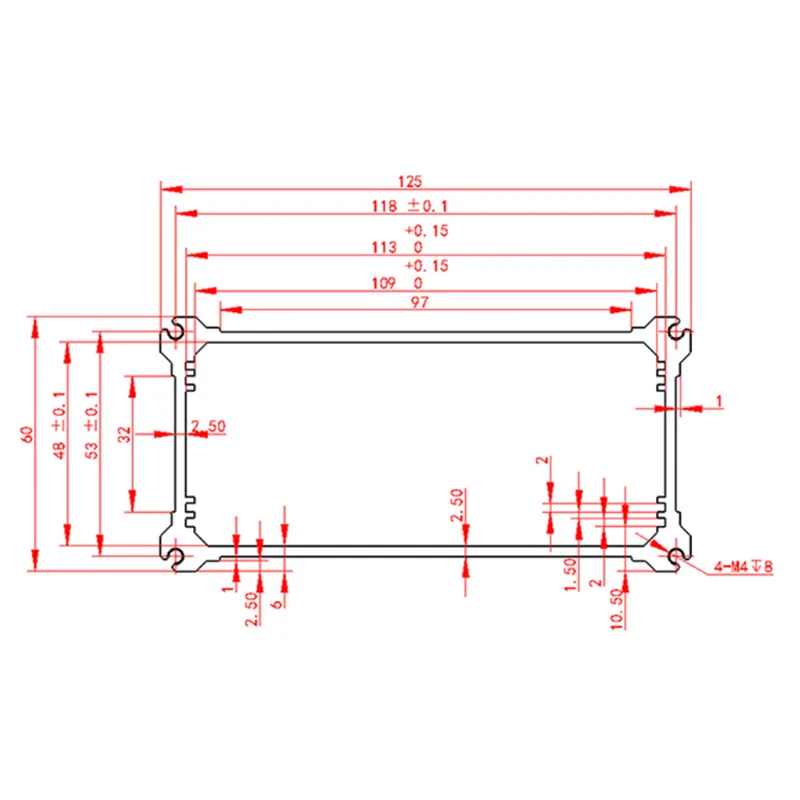

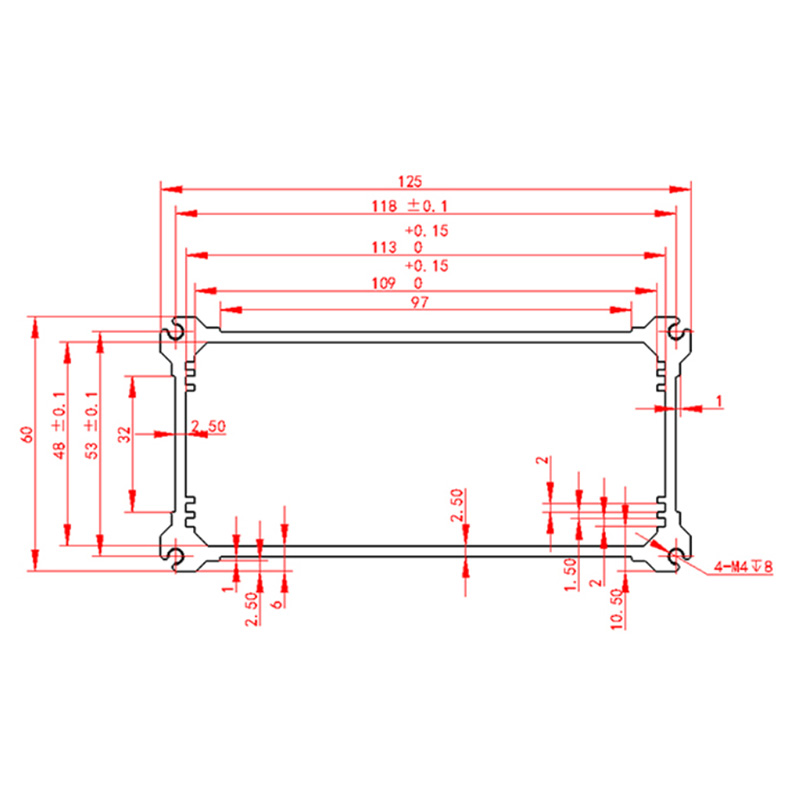

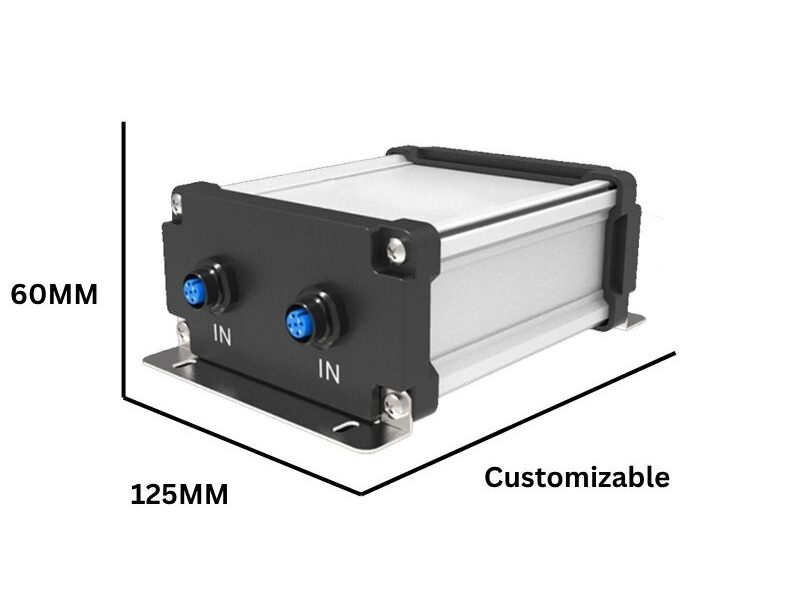

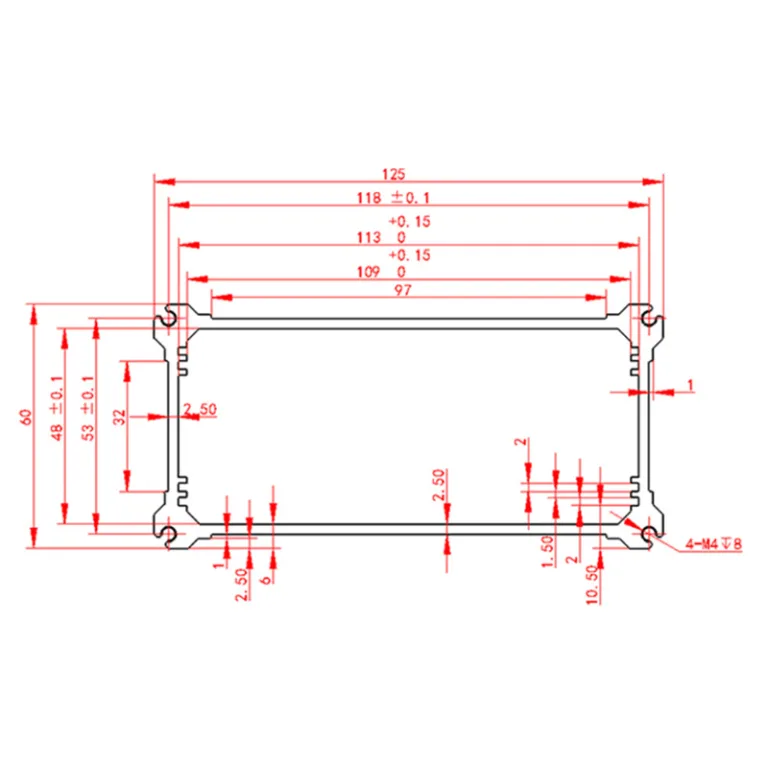

Nominal body cross-section: 125 mm wide x 60 mm high. Specify the length required for your design.

Check PCB dimensions, component height, connector openings and mounting points against the current drawing. Body dimensions are not usable internal space; end panels, seals and brackets affect the assembled envelope.

Material grade, tolerances, finish, quantity requirements, lead time and sealing or test conditions are confirmed for the project.

Compare GA007, GA008 and GA010 and request a model-specific quote or review our custom machining and finishing options.

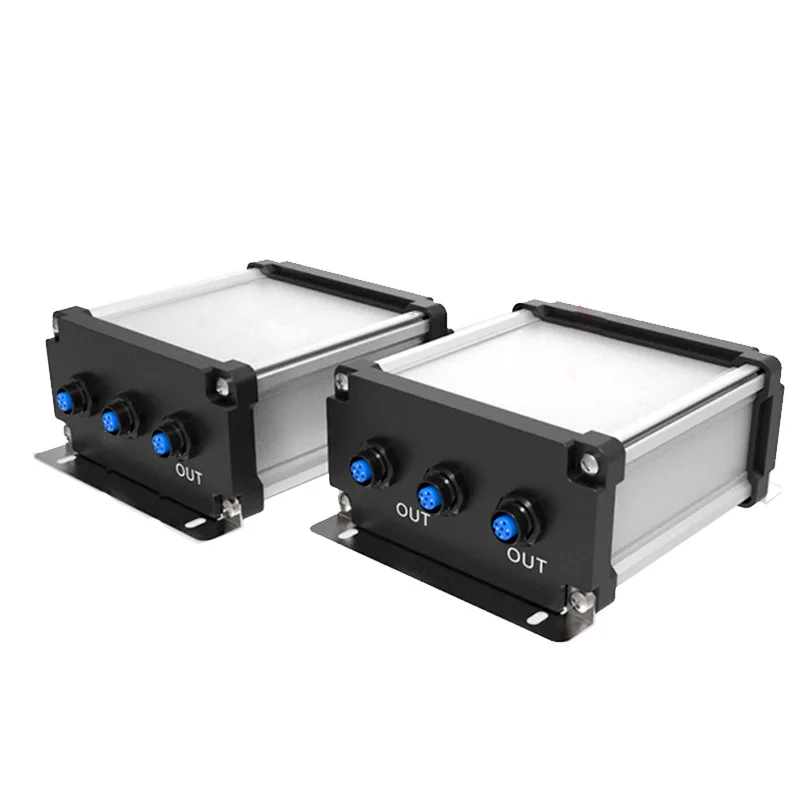

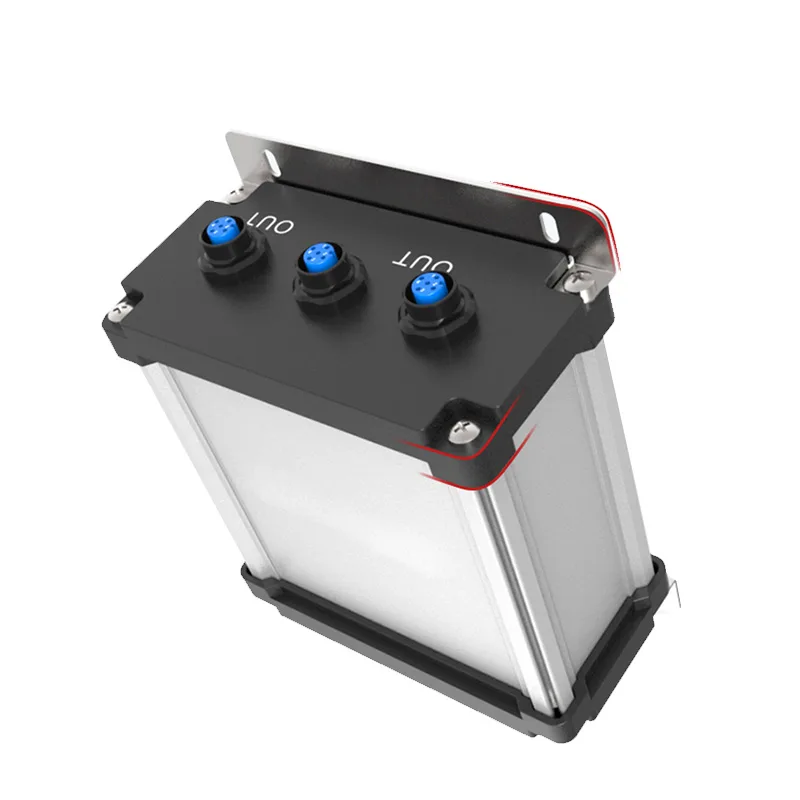

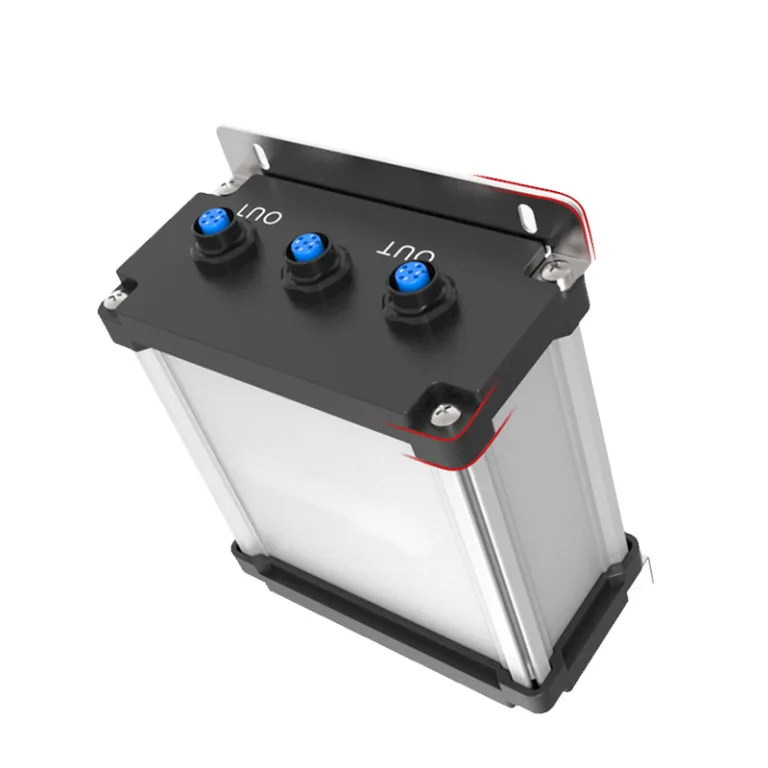

Enclosure Customization References

These images illustrate enclosure customization. Confirm the dimensions and configuration for your selected model in the project drawing.

GA007 Selection and Quotation FAQs

Will my PCB fit inside GA007?

GA007 has a nominal body cross-section of 125 x 60 mm. This is not the usable PCB space. Send the PCB outline, component height, mounting points and connector positions so the fit can be checked against the current drawing.

Can I specify the length and connector openings?

Share your required length and an opening drawing or sketch. We can review CNC machining, mounting holes and product markings for your design. The final length, tolerances and material specification are confirmed for the project.

What should I include in a GA007 enquiry?

Include GA007, your application, drawing or sketch, sample and production quantities, finish and target date. For outdoor or wet use, include the environment and required sealing or testing conditions. Quantity requirements and lead time are confirmed after review.

Featured Products

Our electronic enclosures are expertly designed to provide robust protection for industrial electronic devices, ensuring optimal performance in various environments. Crafted from high-quality aluminum, these enclosures offer durability, excellent heat dissipation, and lightweight construction.

Aluminum Enclosure

19 inch rackmount chassis

Instrument chassis

Aluminum Panel & hardwares

Waterproof Enclosure

Sheet Metal Enclosure

Amplifer Enclosure

Discuss Your Enclosure Project

Send your requirements so we can review an existing housing and the customization needed for your electronics.

Information for a Useful Quote

Selected model, required length and PCB layout
Connector openings, mounting and installation environment
Sample and production quantities, finish and target date

A sketch and dimensions are welcome if a finished drawing is not yet available.
