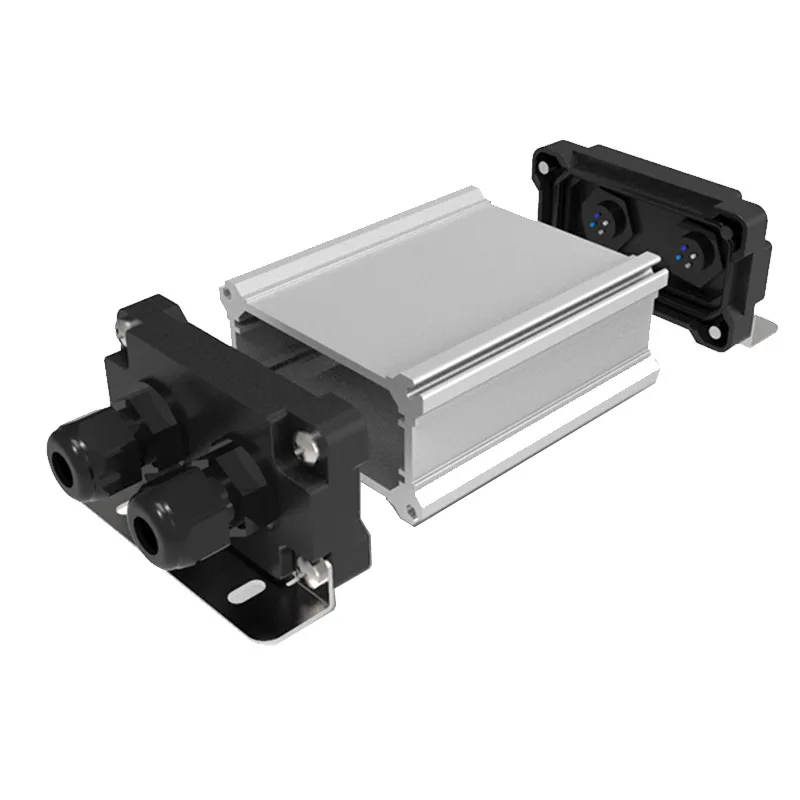

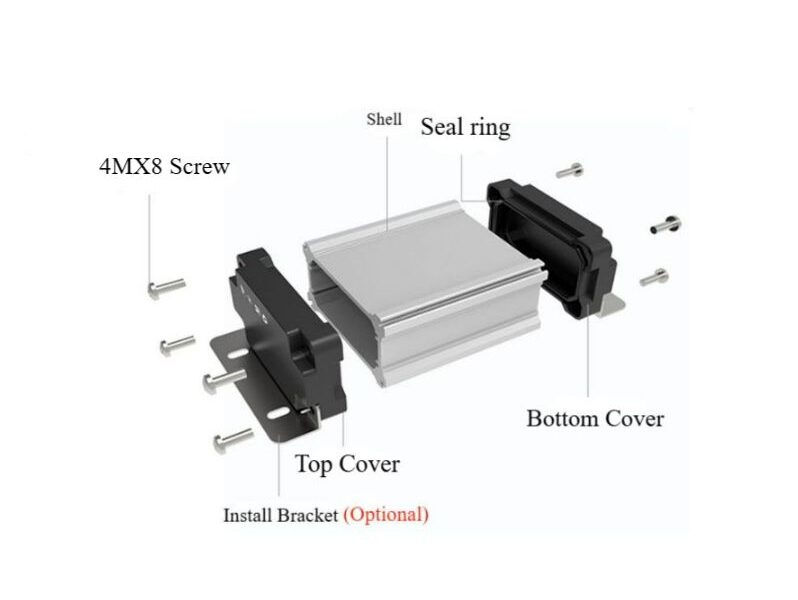

| Description | QTY(PCS) |
| Enclosure | 1 |
| Front Panel | 1 |
| Back Panel | 1 |
| Bracket (Optional) | 2 |
| Screw M4*8 | 8 |

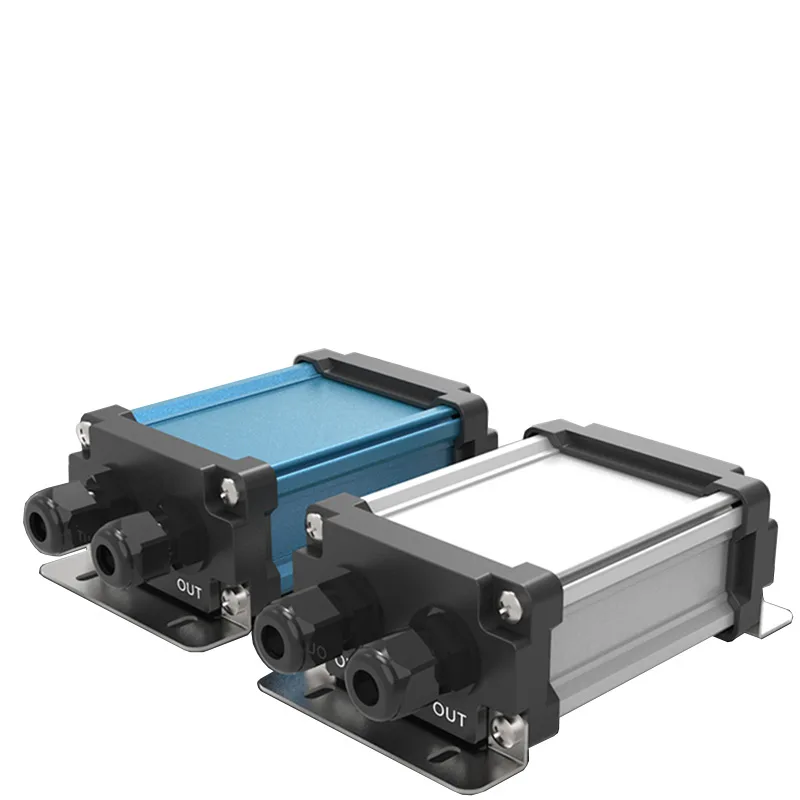

Anodizing 8-10µm (clear, black, silver‑gray in stock; Pantone/RAL colors from 300 sets).
Powder coating ≥40 µm.
Sand‑blasting and brushing pre‑treatments available.

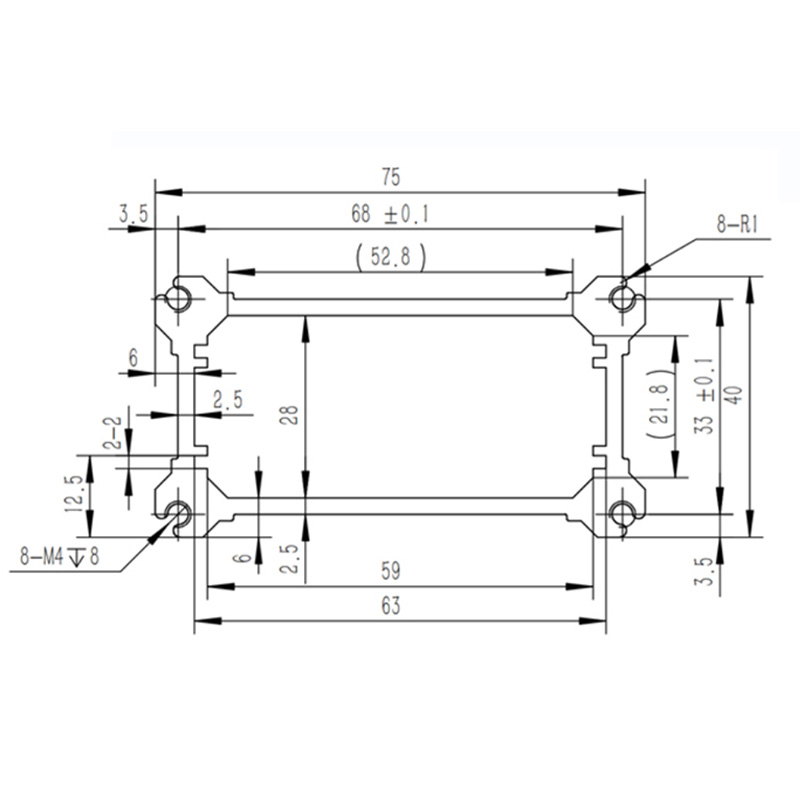

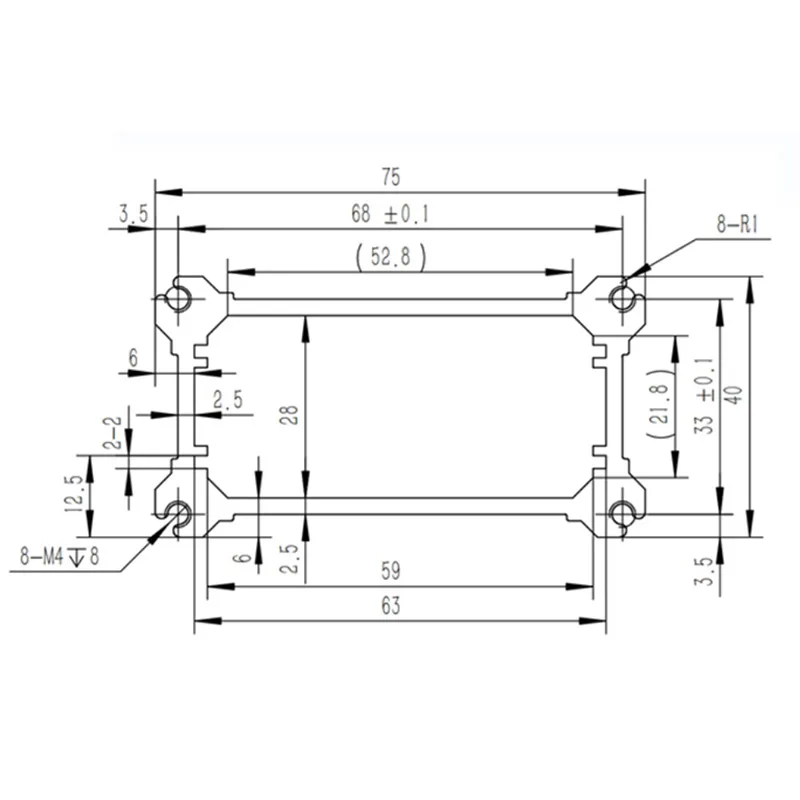

Stock: 1.2 mm & 1.5 mm; custom 2–10 mm.
Sharp edge or R≥0.5 mm radius.

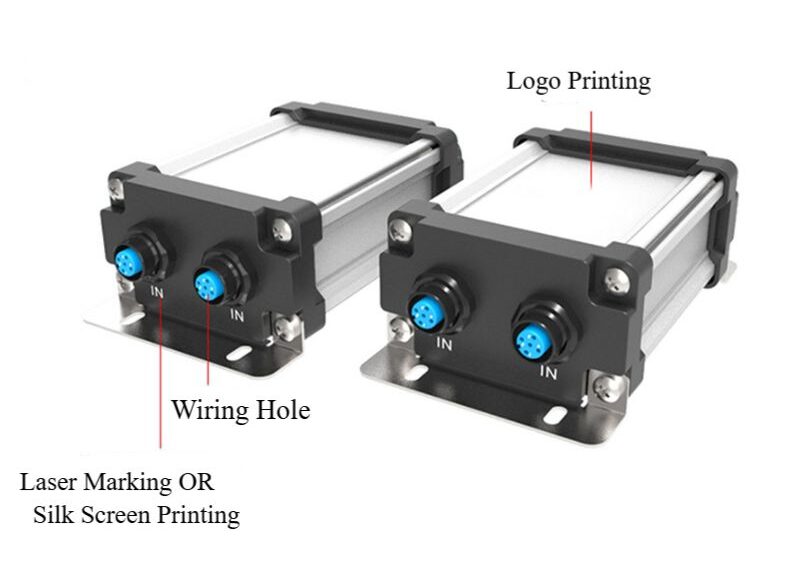

Options for chamfered edges, cut‑outs, and etched or laser‑marked logos.
Linear fins plus add‑on heat‑sinks dissipate approx. 8–10 W per 100 mm length at ΔT 40 °C.
Thermal simulation report available.

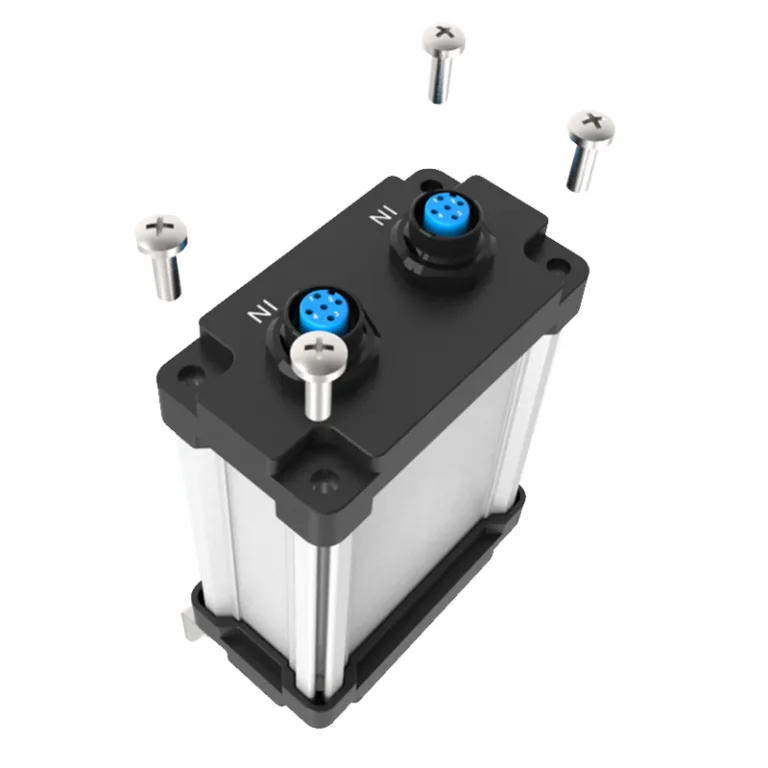

Our electronic enclosures are expertly designed to provide robust protection for industrial electronic devices, ensuring optimal performance in various environments. Crafted from high-quality aluminum, these enclosures offer durability, excellent heat dissipation, and lightweight construction.
