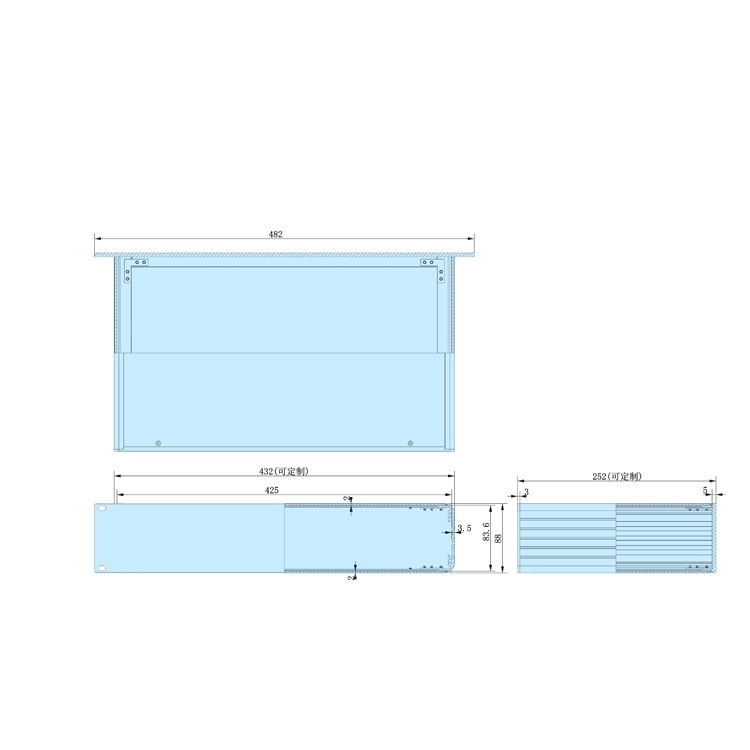

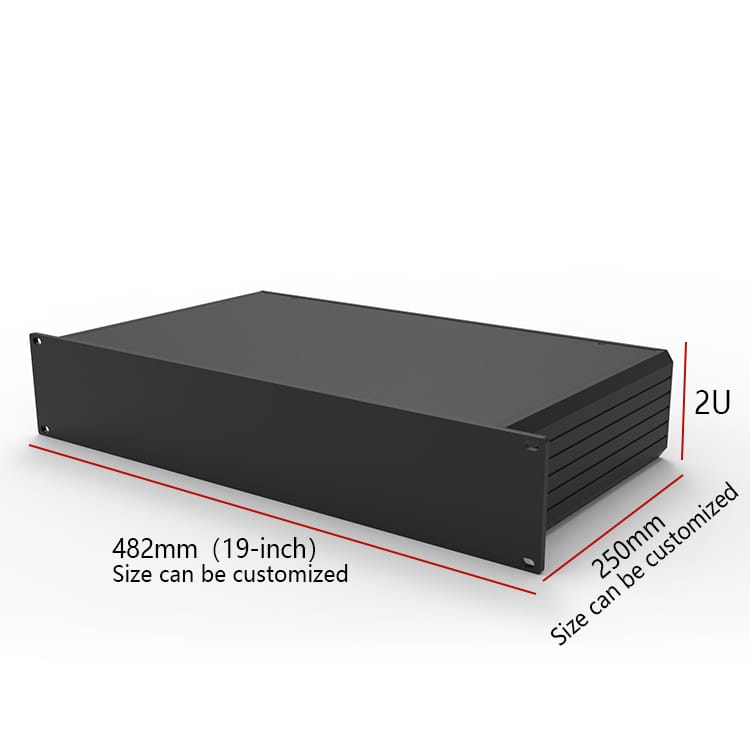

19 Inch Rackmount Chassis for Telecom Systems 482W*88H DB2U

19 Inch Rackmount Chassis for Telecom Systems 482W*88H

ITEM NO.DB2U

Brushed/sandblasted surface treatment, please send an inquiry for more custom colors!

If you can’t find the size you need, we offer customized solutions through tooling, sheet metal bending, and aluminum plate splicing to meet your requirements.

Please be patient, we will get back to you within an hour!

19 Inch Rackmount Chassis for Telecom Systems

  • Robust Aluminum Build: 3/5/8mm thick front panel, secured by 4x M3 screws + internal L-type structure (24 screws) for stability.

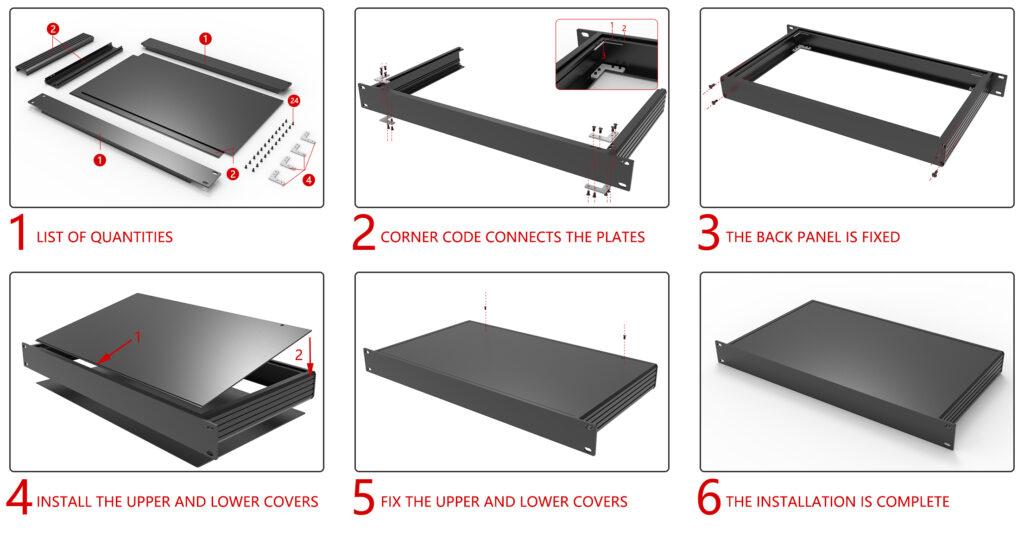

  • Easy Assembly: Front/rear supports for trays, displays, PCBs; tool-free modular installation.

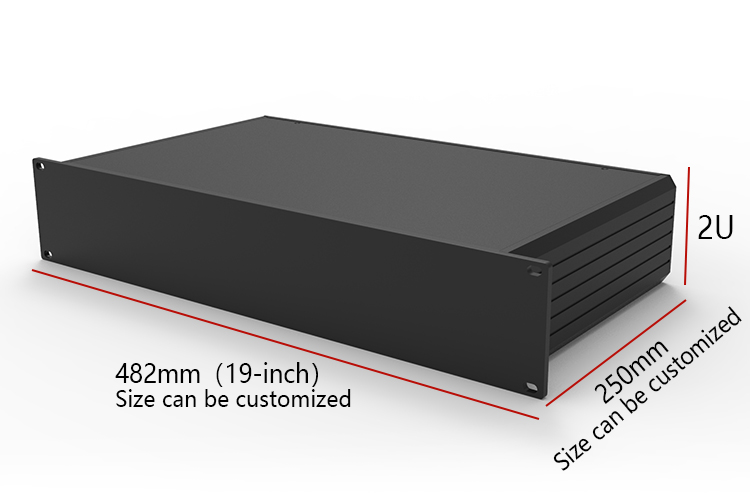

  • Multiple Sizes: Available in 1U/2U/3U/4U heights & 200/250mm depths.
  • Custom Options: Silver/black finishes, with/without handles; cutouts, color/size customization (NO MOQ).
  • Applications:Ideal for data centers, computer networking, and security control systems, offering reliable protection and flexible deployment for server equipment.

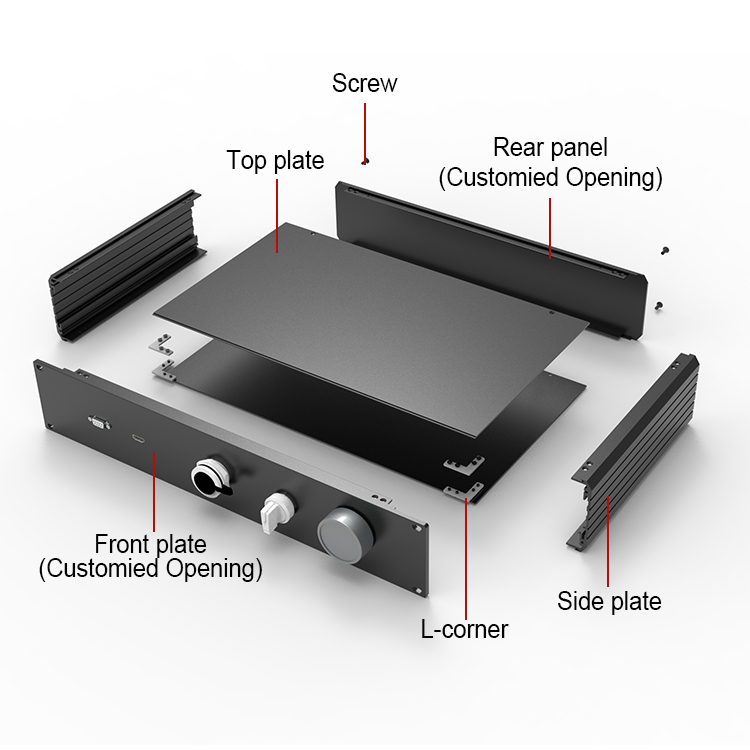

DescriptionQTY(PCS)
Front aluminum plate1
Back aluminum plate1
Side aluminum panel 2
Top&Bottom aluminum plate2
Corner fixed accessories4
Carbon steel nickel cross countersunk screw M3X824
Custom Enclosure Solutions for Your Project Needs

Custom Enclosure Solutions for Your Project Needs

DA1 DB2 DC3
FAQs

FAQs

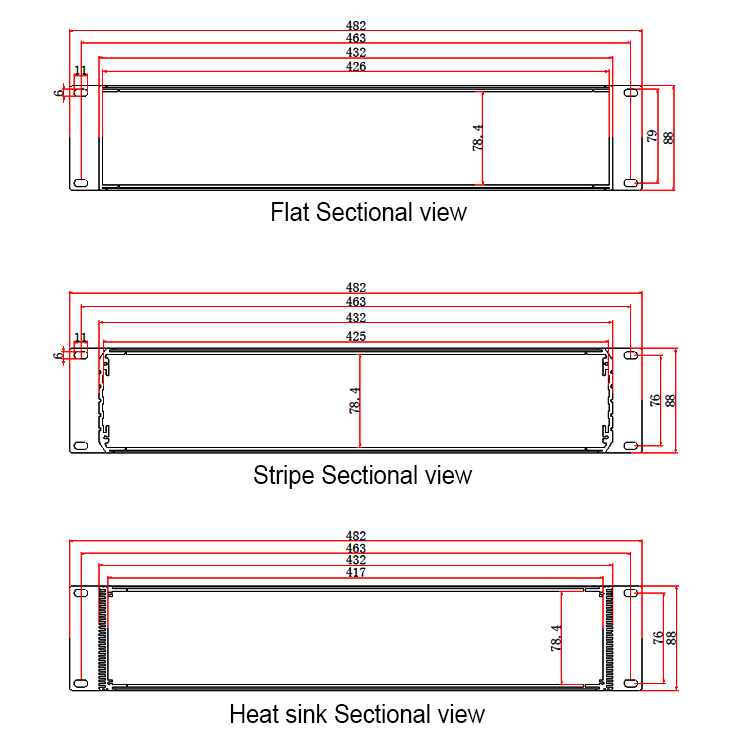

What are the enclosure dimensions and length tolerance? Can width/height be modified?

Width/height are fixed by the extrusion profile; length is customizable.
Standard tolerance ±0.20 mm (≤300 mm).
2D/3D drawings (DWG/STEP) available.

Which alloy is used and what is the thermal performance?

Default alloy is 6063‑T5 (thermal conductivity ≈ 200 W/m·K).
End plates can be 6061‑T6 or 5052‑H32.
ADC‑12 die‑cast parts available on request.

What are the wall‑thickness options? Can local areas be thickened?

Wall thickness is fixed by the profile (1.2–3 mm depending on series, cannot be thickened).
Extra heat‑sinking fins or CNC milled slots can be added.
