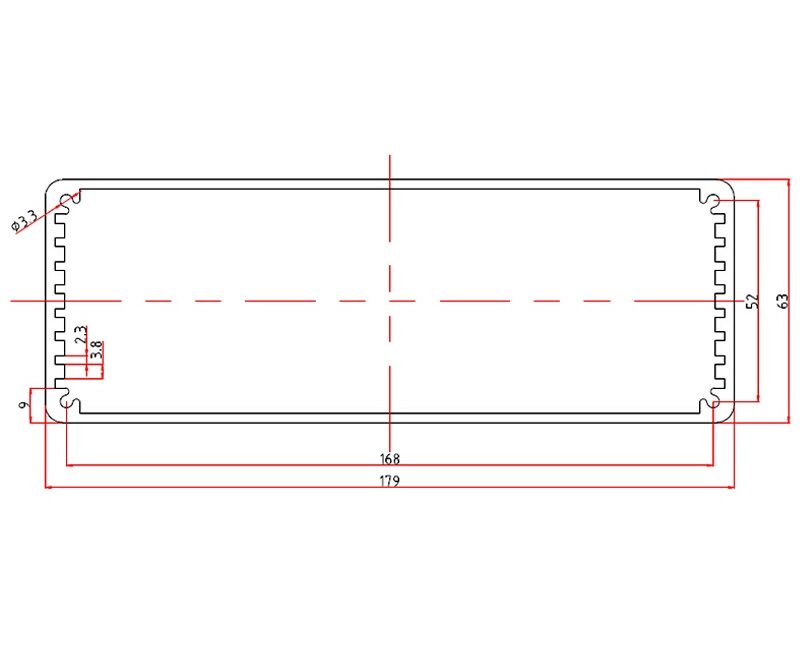

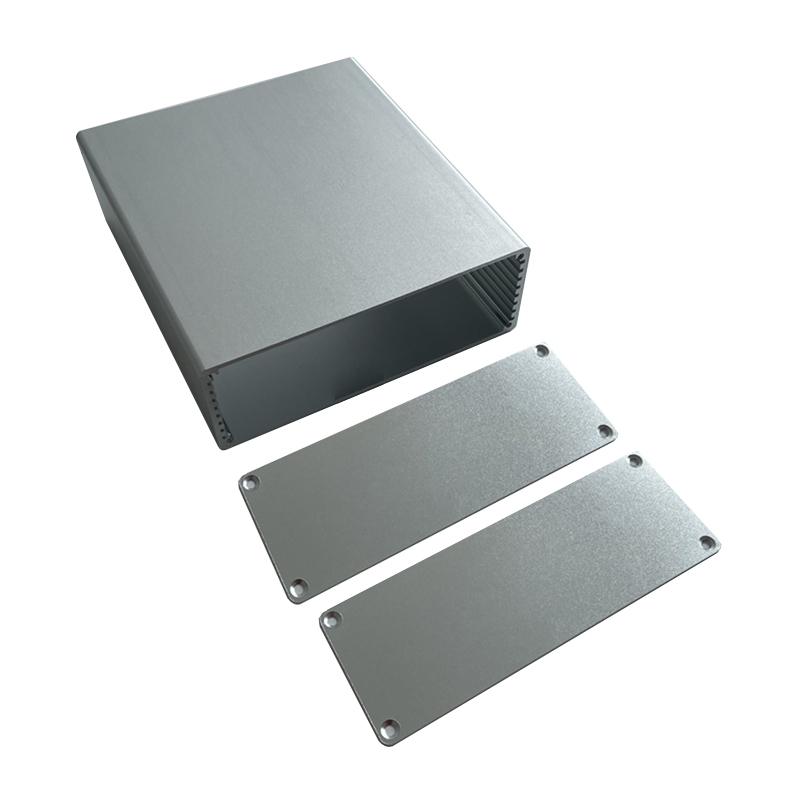

| Item | Size | Mat | Thk | Qty |
| Box | 179*63 | 6063AL | 2 | 1 |
| End Panel | 179*63 | 5052AL | 1.2-1.5 | 2 |
| Screw | M3 | iron | 6 | 8 |
Width/height are fixed by the extrusion profile; length is customizable.
Standard tolerance ±0.20 mm (≤300 mm).
2D/3D drawings (DWG/STEP) available.
Default alloy is 6063‑T5 (thermal conductivity ≈ 200 W/m·K).
End plates can be 6061‑T6 or 5052‑H32.
ADC‑12 die‑cast parts available on request.
Wall thickness is fixed by the profile (1.2–3 mm depending on series, cannot be thickened).
Extra heat‑sinking fins or CNC milled slots can be added.
Our electronic enclosures are expertly designed to provide robust protection for industrial electronic devices, ensuring optimal performance in various environments. Crafted from high-quality aluminum, these enclosures offer durability, excellent heat dissipation, and lightweight construction.
