Common Materials and Performance Analysis for Instrumentation Enclosures

>

>

Common Materials and Performance Analysis for Instrumentation Enclosures

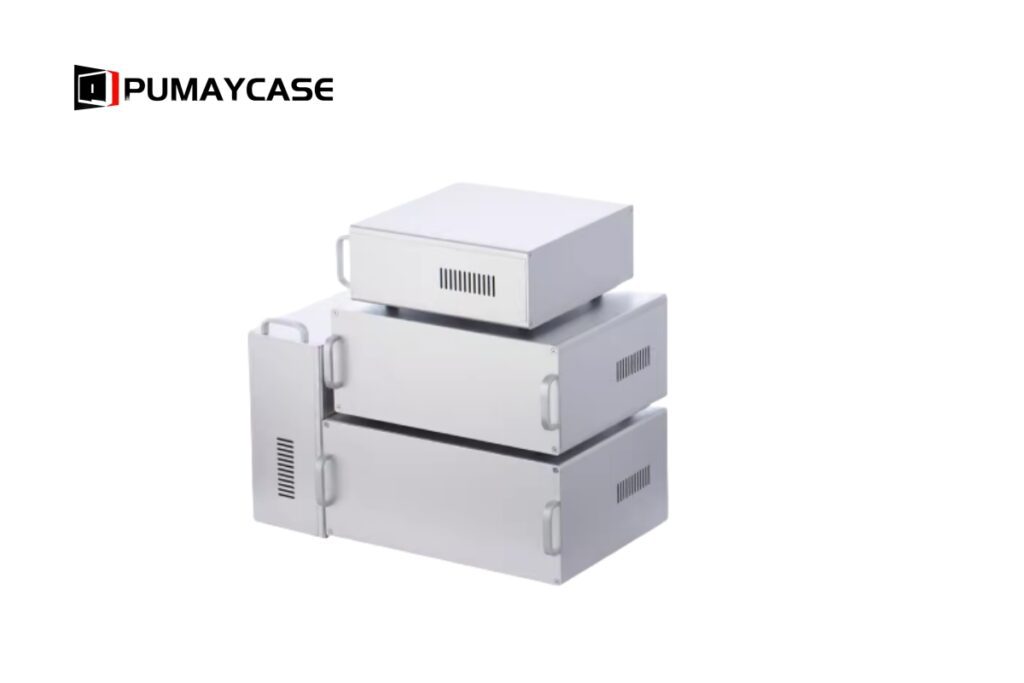

Stacked aluminum enclosures, silver, with ventilation slots and handles

Instrumentation enclosures protect sensitive equipment from environmental factors and mechanical damage while ensuring optimal performance. Selecting the right material is crucial for achieving the desired balance of durability, thermal management, corrosion resistance, and weight1.

This guide breaks down the most common materials used2 for instrumentation enclosures and their performance characteristics3, helping you make an informed choice.


1. Aluminum Alloy

Overview:\
Aluminum is one of the most popular materials for instrumentation enclosures due to its excellent combination of lightweight, strength, and corrosion resistance.

Key Features:

  • Lightweight: Reduces overall equipment weight, making it ideal for portable devices.
  • High Thermal Conductivity: Excellent for heat dissipation in power electronics and high-performance devices.
  • Corrosion Resistance: Naturally forms an oxide layer for protection; anodizing enhances durability.
  • Good EMI/RFI Shielding: Blocks electromagnetic interference, ensuring reliable operation of sensitive electronics.

Applications:

  • Medical Devices
  • Power Electronics (amplifiers, inverters)
  • Industrial Control Systems
  • Telecommunication Equipment

Surface Treatment Options:

  • Anodizing: Improves corrosion resistance and aesthetics.
  • Powder Coating: Adds a protective layer with customizable colors and textures.

Performance Summary:

PropertyPerformance
WeightLight
Corrosion ResistanceHigh (especially when anodized)
Thermal ConductivityExcellent
EMI/RFI ShieldingGood
CostModerate

2. Stainless Steel

Overview:\
Stainless steel is known for its high strength and superior corrosion resistance, especially in harsh or outdoor environments.

Key Features:

  • Corrosion Resistance: Excellent, particularly 316L stainless steel, which is suitable for marine and chemical environments.
  • High Strength and Impact Resistance: Ideal for heavy-duty applications.
  • Aesthetic Appeal: Polished or brushed finishes give a professional look.

Applications:

  • Outdoor Instrumentation
  • Food Processing and Pharmaceutical Equipment
  • Marine and Offshore Applications
  • Military-Grade Systems

Surface Treatment Options:

  • Polishing: Improves corrosion resistance and aesthetics.
  • Electropolishing: Removes surface impurities for enhanced cleanliness and passivation.

Performance Summary:

PropertyPerformance
WeightHeavy
Corrosion ResistanceExcellent (316L grade)
Thermal ConductivityModerate
EMI/RFI ShieldingExcellent
CostHigh

3. Mild Steel (Carbon Steel)

Overview:\
Mild steel is often used for indoor applications where cost efficiency and strength are priorities.

Key Features:

  • High Strength: Suitable for large enclosures and heavy equipment.
  • Cost-Effective: Lower material cost compared to aluminum or stainless steel.
  • Easily Machined and Fabricated: Supports custom designs and complex shapes.

Applications:


Surface Treatment Options:

  • Powder Coating: Prevents corrosion and allows color customization.
  • Galvanization: Adds a zinc layer for rust protection.

Performance Summary:

PropertyPerformance
WeightHeavy
Corrosion ResistanceLow (requires surface treatment)
Thermal ConductivityLow
EMI/RFI ShieldingGood
CostLow

4. Polycarbonate (PC) and ABS Plastics

Overview:\
Polycarbonate (PC) and ABS (Acrylonitrile Butadiene Styrene) are commonly used for non-metallic enclosures, providing excellent insulation and lightweight designs.

Key Features:

  • Lightweight and Impact-Resistant: Polycarbonate offers high impact strength, while ABS is more cost-effective.
  • Electrical Insulation: Non-conductive, making it ideal for low-voltage applications.
  • Weather Resistance: UV-resistant grades are suitable for outdoor use.

Applications:

  • Laboratory Instruments
  • Portable Measuring Devices
  • Low-Voltage Electrical Enclosures

Surface Treatment Options:

  • UV Coating: Prevents yellowing and degradation in outdoor applications.
  • Textured Finish: Reduces surface scratches and improves appearance.

Performance Summary:

PropertyPerformance
WeightVery light
Corrosion ResistanceExcellent
Thermal ConductivityPoor
EMI/RFI ShieldingLow
CostLow to Moderate

5. Composite Materials (FRP – Fiber Reinforced Plastic)

Overview:\
FRP (Fiber Reinforced Plastic) is known for its corrosion resistance, lightweight properties, and high mechanical strength.

Key Features:

  • Non-Conductive: Provides excellent electrical insulation.
  • High Chemical Resistance: Ideal for corrosive environments.
  • Lightweight: Easier to transport and install compared to metal enclosures.

Applications:

  • Chemical and Petrochemical Industries
  • Marine Applications
  • High-Voltage Electrical Enclosures

Performance Summary:

PropertyPerformance
WeightLight
Corrosion ResistanceExcellent
Thermal ConductivityPoor
EMI/RFI ShieldingLow
CostHigh

Material Selection Guide

MaterialBest ForLimitations
Aluminum AlloyLightweight, heat dissipation, EMI shieldingModerate cost
Stainless SteelCorrosive environments, outdoor useHeavy and expensive
Mild SteelIndoor industrial enclosures, cost efficiencyRequires surface treatment
PolycarbonatePortable devices, non-conductive applicationsLimited thermal conductivity
FRPChemical resistance, electrical insulationHigh cost, low EMI shielding

Selecting the right material for an instrumentation enclosure depends on the environment, performance requirements, and budget. Aluminum is a versatile choice for most applications due to its balance of weight, thermal efficiency, and EMI shielding, while stainless steel is essential for harsh environments. For non-metallic applications, polycarbonate and FRP offer lightweight, corrosion-resistant alternatives. Understanding the strengths and limitations of each material ensures your enclosure will provide reliable protection and long-term performance.
