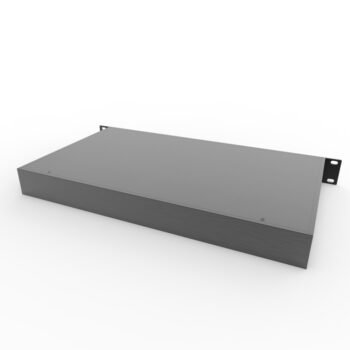

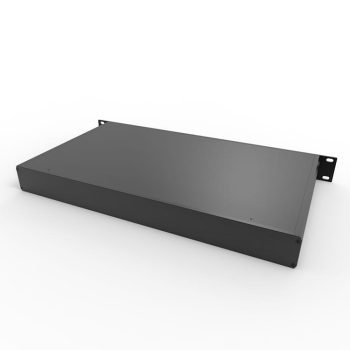

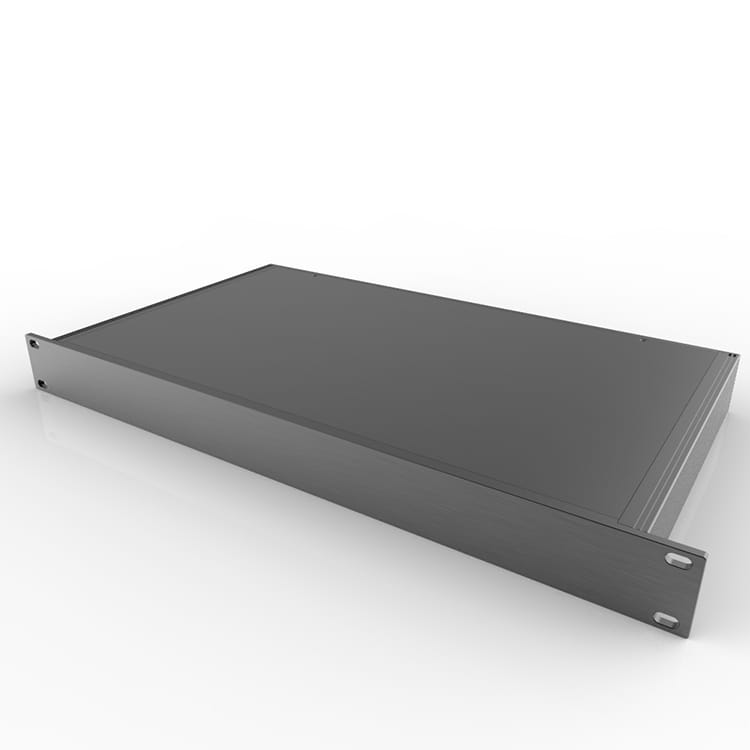

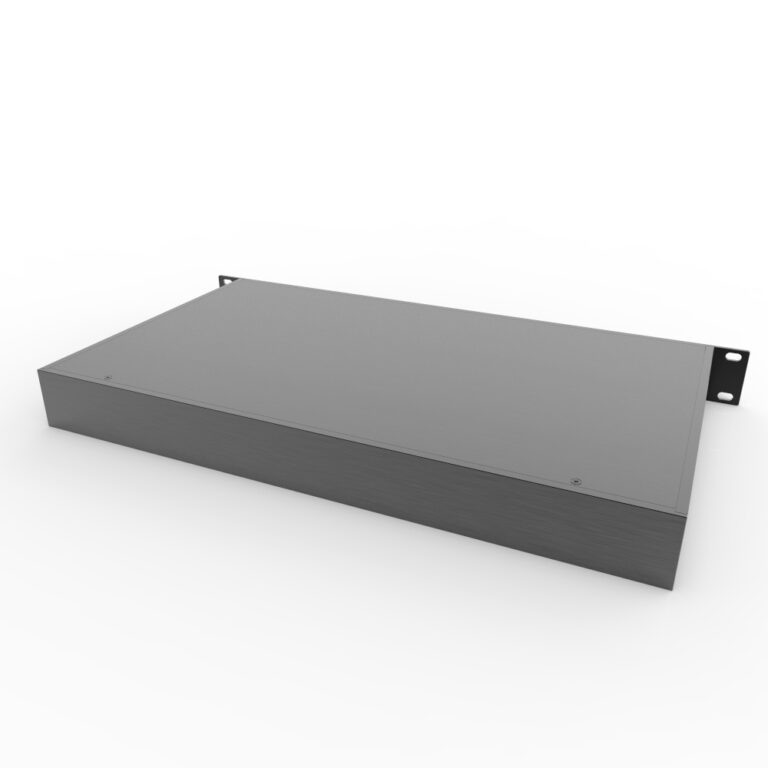

1u 19 rack mount enclosure
Simplify system integration with PUMAYCASE 19-inch rackmount chassis. Built as a one-piece aluminum structure, it offers outstanding strength, precise alignment, and easy rack installation—ideal for harsh industrial environments. Available in multiple heights and configurations to meet diverse application and project requirements.
Quick Reference for Procurement & Engineering Teams
- Standards-Ready Fit: 19 in × 1.75 in (EIA-310). Rail spacing 18.312 in. Typical depth 250–450 mm—verify against PCB and cable bend radius.
- Material Choices for Cost vs. Weight: 5052-H32 Al (1.5 mm) for portable gear, SECC (1.2 mm) for budget frames, 6061-T6 (≥2 mm) where shock/vibration is critical.
- Thermal Budget: ≥60 % open front or 40/80 mm hot-swap fan tray. Rule of thumb ≈ 25 CFM per 50 W board heat.
- EMC & Ingress: Folded seams + “C” gasket ≈40 dB at 1 GHz; optional IP54 kit for dusty production floors.
- Fast Serviceability: Captive M6/10-32 screws, light-duty rails (≤20 kg), rear L-brackets to stabilise long PCBs during bring-up.
- Front-Panel Customisation: CNC-cut I/O clusters, silk-screen legends shipped in line with your BOM revision to reduce rework.
- Supply Chain Notes: MOQ ≈ 50 pcs; standard lead 4–6 weeks incl. surface finish. Full drawing pack, PPAP & COC available on request for regulated markets.
